Flow Indicators
At Kaydon Filtration, we are committed to bringing exceptional value to our customers, even in the simplest of solutions. Kaydon leads the industry when it comes to ensuring troublefree operation and protecting our customers’ investments. Pressure and gravity oilers offer fundamental control mechanisms to maintain proper lubrication for your equipment – lubrication that reduces friction, minimizing wear and extending the life of your equipment.
The Model 902A Pressure Feed Oiler is a combination of a metering valve and flow indicator used for the distribution and supply of lube oil under pressure to the points of use, such as bearings and gears.
The 4B Gravity Sight Feed Oiler affords a clear view and specific control of lube oil flowing by gravity to a lubrication point. This oiler provides trouble-free service with little or no maintenance required.
Kaydon Model 825 Safety Overflow Sights are installed as an accessory item for off-line (kidney-loop) oil filtration and conditioning systems. They are designed to provide convenient observation of oil flow to the system pump and maintaining a safe level of oil in an oil reservoir.
The TELEFLO® Model 816BC flow switches are simple and rugged flow switches designed for a wide range of oil and water flow applications. For more than 80 years, the TELEFLO® flow indicator and switch has provided equipment protection against the loss of flow, protecting thousands of installations against costly equipment damage due to inadequate lube oil and water flow.
Model 902A Pressure Oilers
The Model 902A Pressure Feed Oiler is a combination of a metering valve and flow indicator. It is used for the distribution and supply of oil under pressure to lube points of use, such as bearings and gears. It is particularly useful where several lubrication points are served from the same piping manifold. The 902A oilers can be clustered in easily accessible locations. Oil can then be piped up to remote or less accessible lube points. It is particularly useful where several lubrication points are served from the same piping manifold.
Model 4B Gravity Oilers
The Model 4B Gravity Sight Feed Oiler offers a clear oil flow view with fine tune-control. The Model 4B allows oil flow by gravity to a lubrication point. The double-window design permits observation of the oil stream from either side. The Model 4B Gravity Sight Feed Oiler offers a clear oil flow view with fine tune-control for gravity circulating oil systems for paper mills, steel mills and aluminum mills.

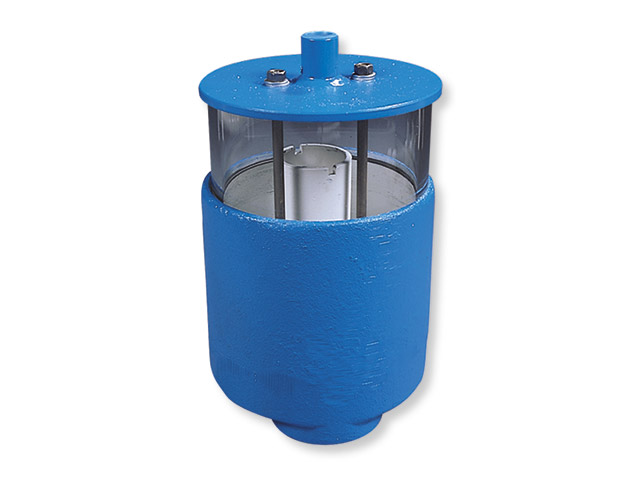

Model 825 Overflow Sights
Kaydon Model 825 Overflow Sights are designed for convenient observation of liquid flow and are extremely practical for maintaining a desired or fixed level of liquid circulating in a system. The metal top has a 1/2” NPT vent connection to connect into the reservoir above the maximum liquid level for vacuum operating systems.

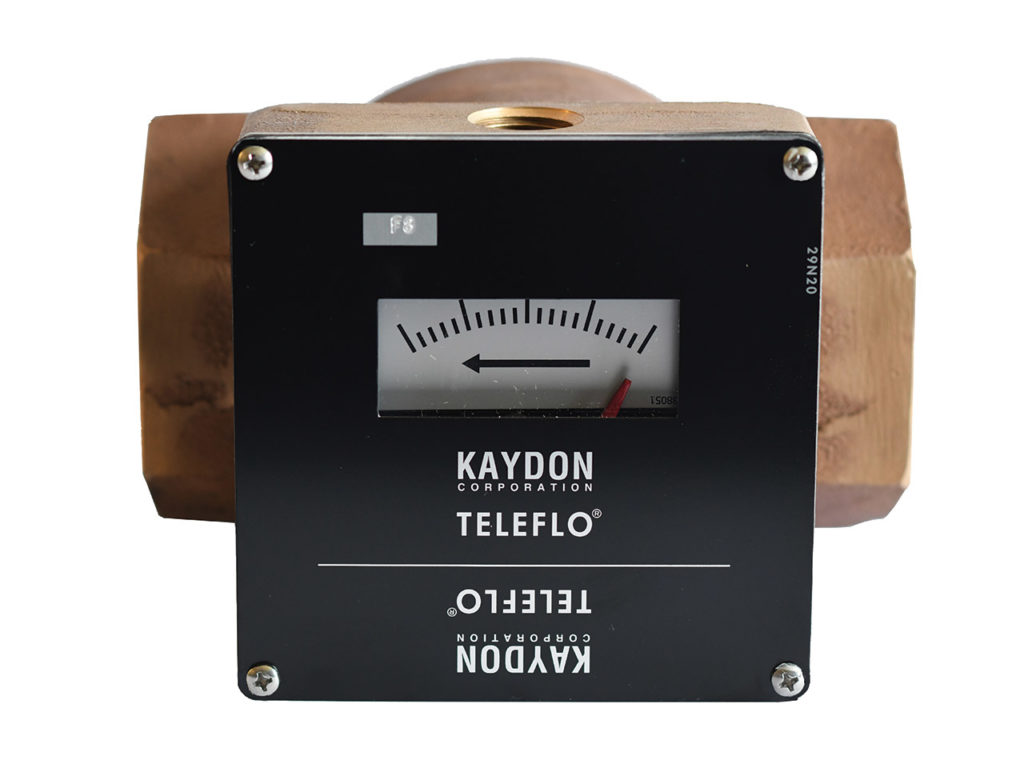

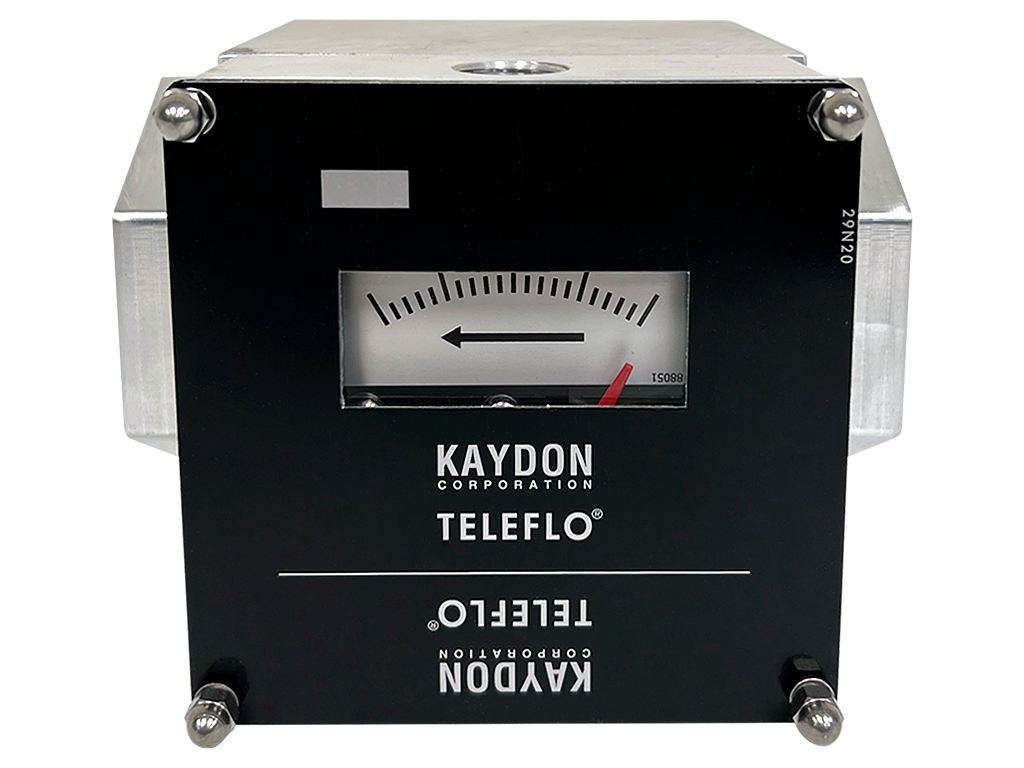

TELEFLO® Model 816BC Flow Switch
The TELEFLO Model 816BC flow switches design is rugged, yet easy to use for a wide range of oil and water flow applications. For more than 70 years, the TELEFLO flow switch with flow indicator has provided equipment protection against the loss of flow, protecting thousands of critical equipment installations against costly equipment damage due to inadequate liquid flow. The family of TELEFLO Model 816BC flow switches is an easy-to-use, low-cost solution to protect critical costly equipment in the mining, pulp and paper, steel and aluminum mill, and power generation industries. The TELEFLO Model 816BC switches at the factory preset no-flow setpoint. It is designed with a pointer on a numberless dial scale providing a visual confirmation of flow. The switch can be connected to a light or a relay to trigger a low-flow or no-flow alarm. The Model 816BC is not a flow meter and only indicates flow is present.
